Product Details
Power Supply: 36V～380V
Protection: IP66
Temperature: -40°C～+80°C
Function Relay: 5A/250V (AC, continuous)
1. Equipped with a battery voltage warning device that automatically cuts off the circuit when the voltage is insufficient.
2. Safety key switch to prevent unauthorized use.
3. Internal functions can be set via computer interface: Up/Down, East/West, South/North can be set to mutually inhibit each other.
4. Spare key 1 can be set to power on, acceleration, stop, normal, etc.

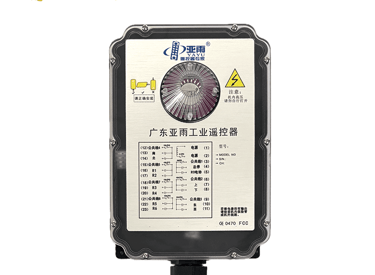

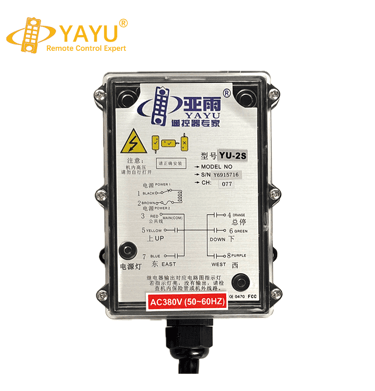

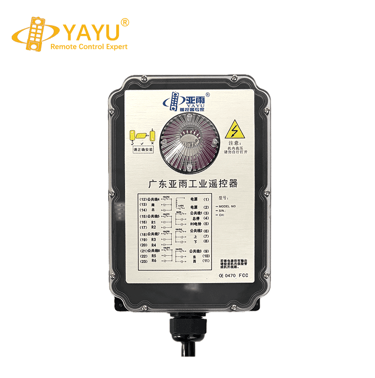

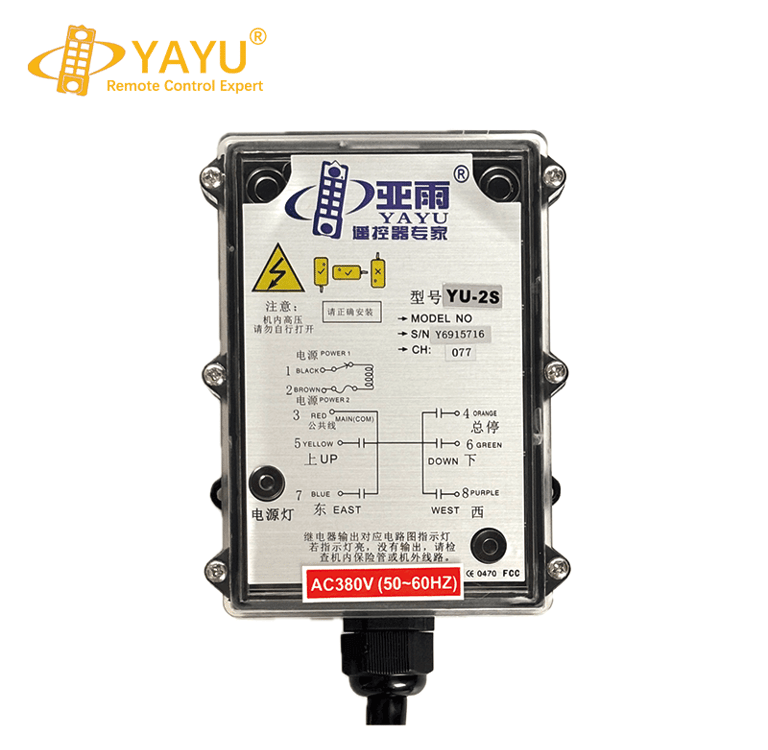

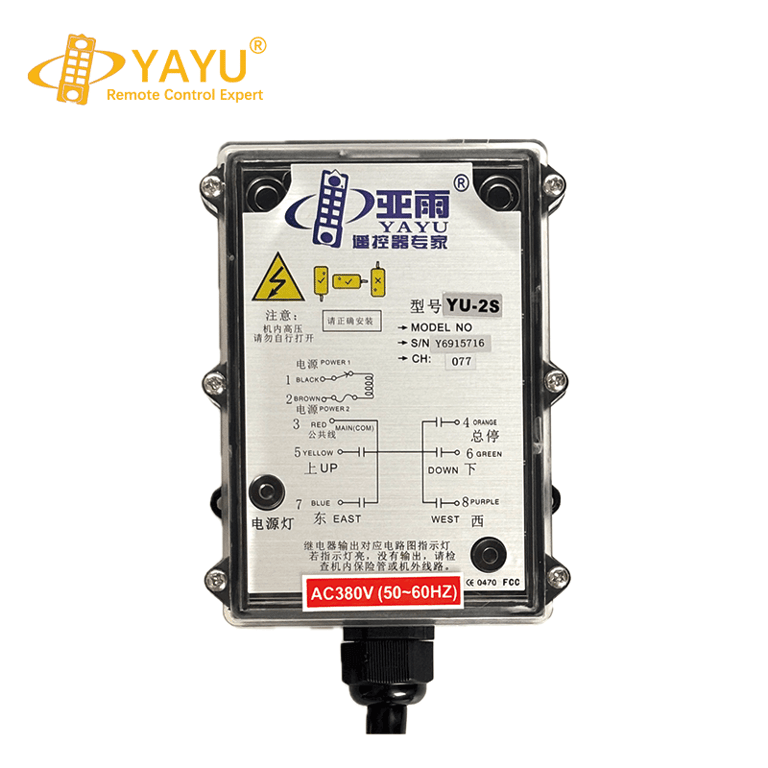

Small receiver
Frequency: 868MHz
Dimensions and weight: 83*121*51mm, 329g

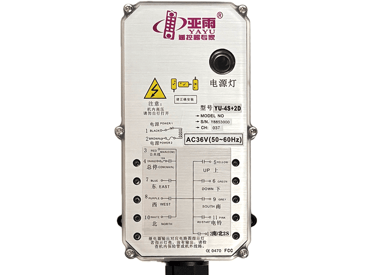

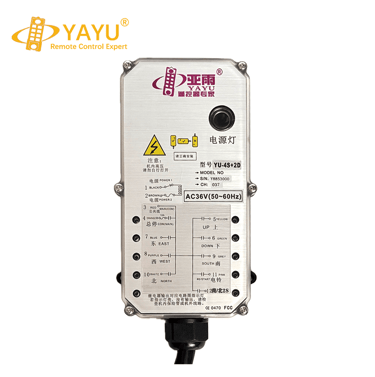

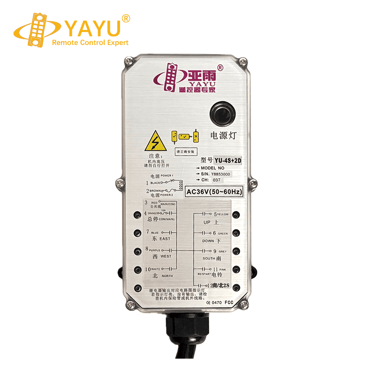

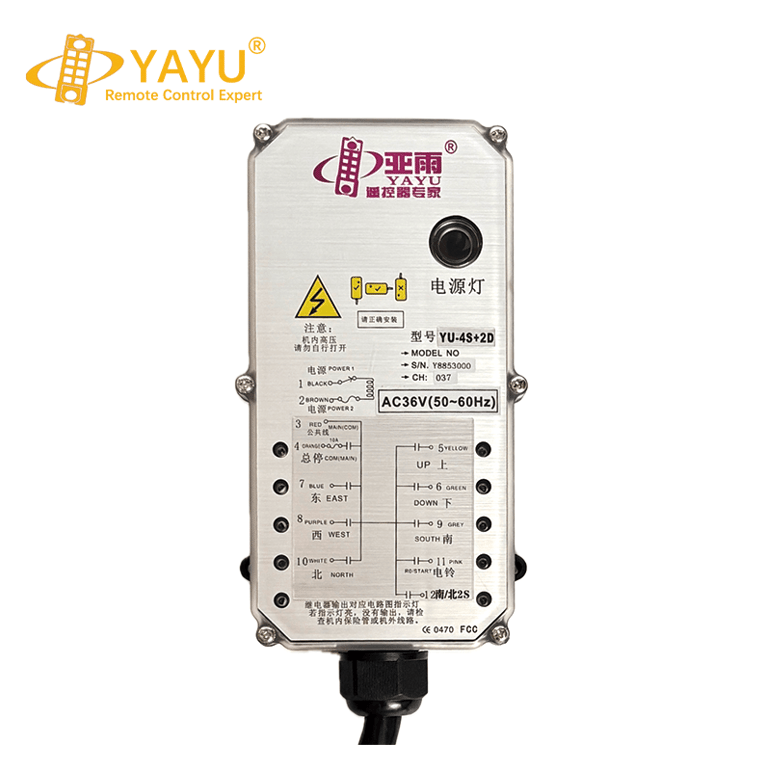

Conventional series receivers
Frequency: 868MHz
Dimensions and Weight: 86*170*47mm, 535g

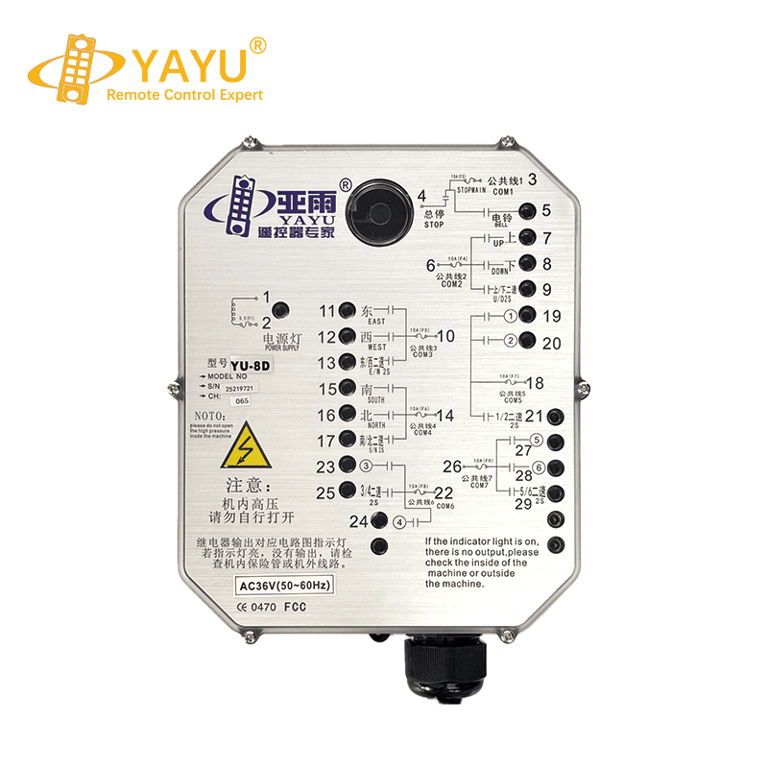

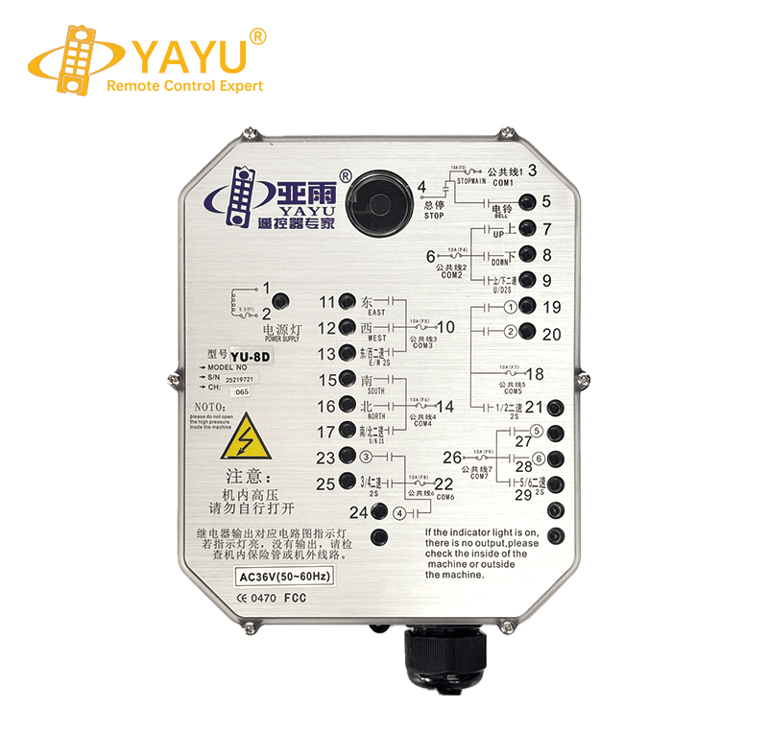

Large receiver
Frequency: 868MHz
Dimensions and Weight: 158*192*59mm
1392g

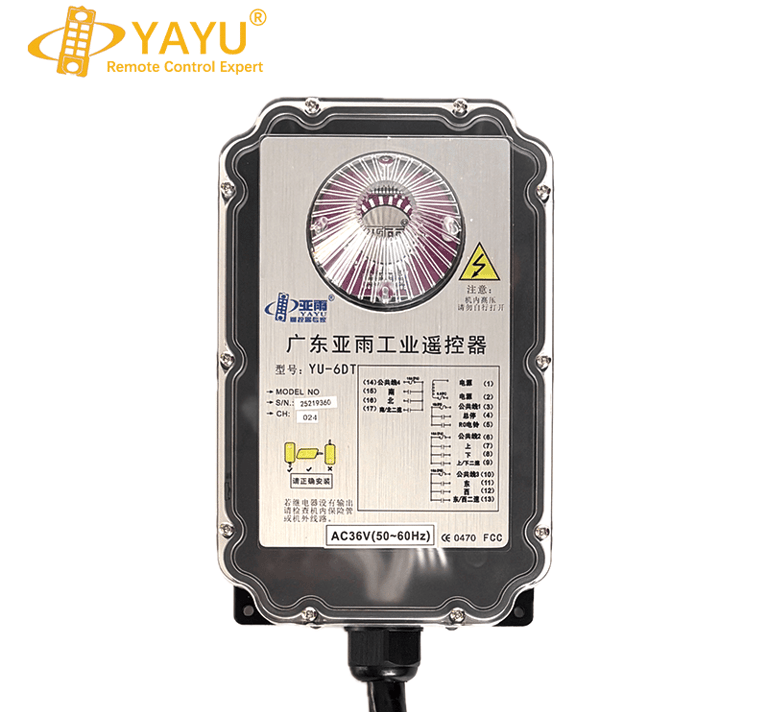

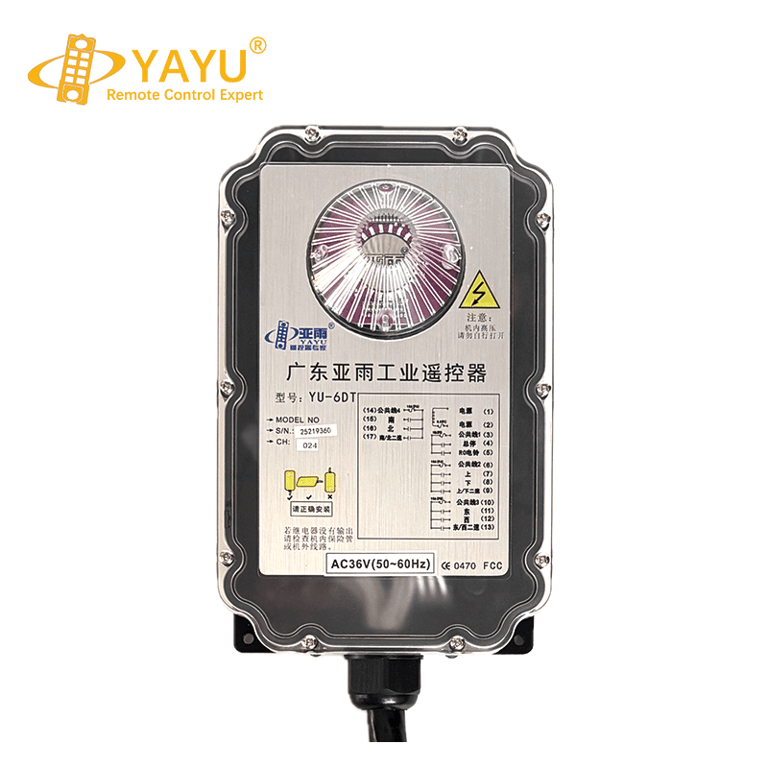

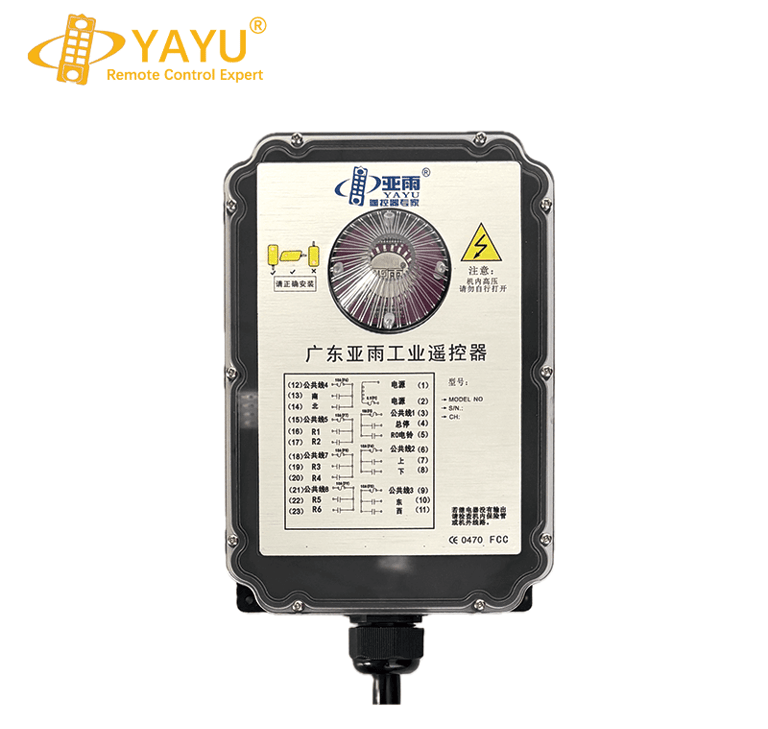

T-type receiver
Frequency: 433MHz
Dimensions and Weight: 120*187*49mm
591g

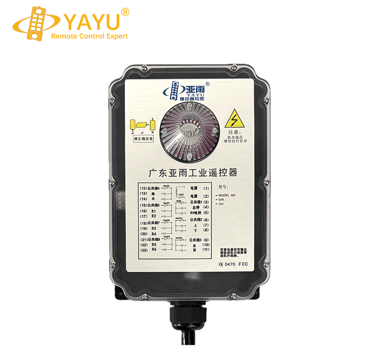

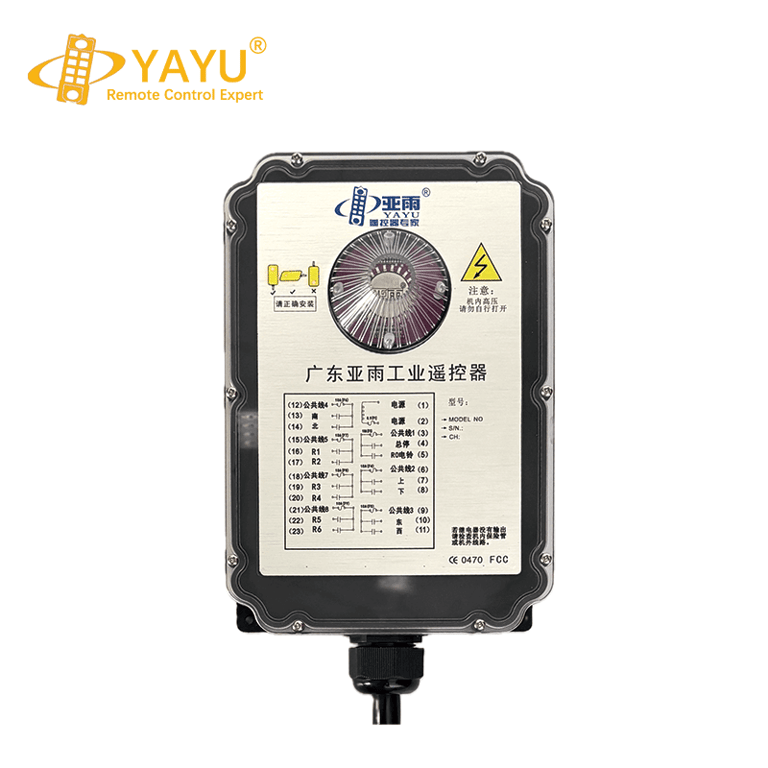

T-type large receiver
Frequency: 433MHz
Dimensions and weight: 150*215*54mm
